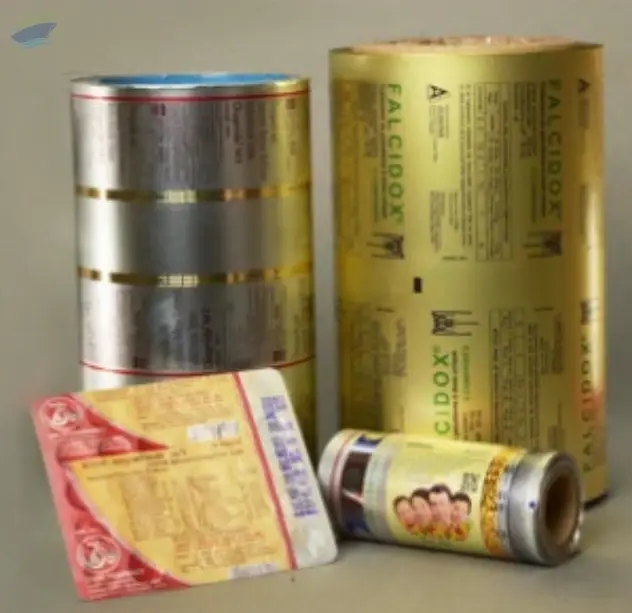

Holographic Blister/aluminium Foil

1. Blister / Pharma Foil , Plain / Multi Colour Printed

This type of foil is used in the pharmaceutical industry to pack tablets and capsules to protect them
from ambient contamination.

The foil thickness options offered are-
0.020 +/- 0.016 mm (Foil gsm = 54.20 +/- 4.34)
0.025 +/- 0.0020 mm (Foil gsm = 67.75 +/- 5.42)
0.030 +/- 0.0024 mm (Foil gsm = 81.30 +/- 6.50)

One side of the foil surface is coated with heat seal lacquer, and the other side is printed or unprinted according to the order by the customer.

Printing & Lacquer Coating: Printing will be done as per the text, layout and shade of hand proof as approved by the customer. For non-printed surfaces, a specified clear lacquer will be coated as a protective layer. Printing inks and lacquer coatings are capable of withstanding 160 C for 1 second dwell time. For printed foil shade, tolerance to heat will be based on a shade card (light to dark) only.

Price range: From USD 7.50 to USD 9.00 per KG, depending on specifications.

Minimum order quantity: 200 KGS per size per design.

For paramedical and pharmaceutical producers, Blister Foil is used for medical purposes; it comes as an aluminum hard-tempered foil with heat-seal lacquers of PVC/PVDC applications.

Request online quotation for Lidding Foils via our E-catalogue:
We also manufacture strip foil and top web film.

OP/AL(20-30)/VC
Width 700mm
Thickness 20-30 micron
ID of core 76mm
Roll OD as customer's requirements

PA 25-30 /AL(45-75)/VC
Width 700mm
Thickness 80-105 micron
ID of core 76mm
Roll OD as customer's requirements

Specification: Width:

1. Specification:Width:

Product Specification & Packing

Product Name Blister aluminum foil/Pharmacitical aluminum foil/PTP aluminum foil

Alloy 8011 H state

Width 600mm

Thickness 20mic, 25mic, 30mic

Construction (Unprinted) OP/ALU/VC; (Printed) OP/INK/ALU/INK/VC

ID 76mm/152mm(3 inches/6 inches)

ED 240mm

Length 1500m(20mic)

Weight 60g/(20mic); 20kg/roll(250*0.02mm)

Density 2.7g/

Packing PE film/Foam gasket/plastic plug/carton/pallet

Container load 20-25 tons in 20 GP container

Product Performance And Characteristics



1 Primer (OP) is suitable for uvink, solvent ink, water based ink

2 Heat sealing lacquer (vc) is suitable for ALU ALU FOIL/PVC /PP/PS/PET

3 HSL 3-5g is suitable for Asian standards, 6-8g is suitable for European standards

4 Printing colors: 1-3 colors, double-sided printing, full bottom with single color printing

5 Water vapor transmission rate, national standard 0.5g/24h

6 Heat sealing strength 7.0N(PVC),6N(PVDC)
Blister Aluminum Foil is a kind of coated aluminum foil, used for cover lidding foil in pharma industry. It provides excellent properties such as of anti-oxygen, moisture-proof, leak-proof, carry-home, anti-pollution, etc.

Adopting hard anodized aluminum as cover material, blister foil is easy to break aluminum foil to take out the drugs by pushing the cover. Adopting heat-seal coating material, which cannot be stripped, PTP blister foil can be bonded with all kinds of plastic-based materials.



PRODUCT USAGE

Commenly heatsealed with PVC, PVDC, PP PET PE etc.

Product Specification & Packing

Product Name alu alu foil/alu alu bottom foil/cold forming alu foil

Alloy 8021-O

Width 630mm

Thickness 140-160mic

Construction OPA/ALU/PVC

ID 76mm/152mm(3 inches/6 inches)

ED 280mm

Length 360mtr(150mic)/330mtr (160mic)

Weight 241g/(150mic)/281g/, 22kg(250mm width roll)

Packing PE film/Foam gasket/plastic plug/carton/pallet

Carton Size 290*290*(width+10)mm

Container Load 20-25 tons in 20container


PRODUCT FEATURES

Alu Alu foil can accept printing, maximum 2 color printing. Mostly company logo and company name as the blister bubble will twist the word shapes so it is not suitable for multiple color printing.

For the base color of alu alu foil, there are silver and gold. The bubble size is applicable for capsule size from 00# to 0#.


PRODUCT PERFORMANCE



- High barrier, easy to shape, no cracking, no delamination

- 160mic thickness is suitable for double zero size and below blister

- 150mic thickness is suitable for single zero size and below blister

- Water vapor transmission rate, national standard 0.5g/24h

- Gas transmission rate: national standard 0.524h0.1 V.S. our company data 0.02/24h0.1

Cold forming aluminum foil, or we can short as alu alu foil, is with good material features. The smooth surface and shinny color will enrich the packing of medicine inside. Also with good protection from oxygen and steam.

PS/PP/Universal Lacquer Coated Al.foil Lids- These lids are used for top sealing of cups/containers made of HIPS/PP/PVC/PP.

VMCH/HSL Coated Al. Foil Lid-these lids are used for top sealing of cups/containers made of PVC/PET.

Poly Laminated Al. Foil Lids-these lids are used for top sealing of cups/containers made of HDPE/PP.

Foil thickness options offered are:
0.030 +/- 0.0024 mm (Foil gsm = 81.3 +/- 6.02)
0.040 +/- 0.0032 mm (Foil gsm =108.40 +/- 6.67)

The testing procedure includes weighing of a 10 cm x 10 cm sample of the order. Foil surface
Options include-

One side bright and other side matt
Both sides bright

Printing & Lacquer Coating : Printing will be done as per text, layout and shade as approved by the customer. Printing inks and lacquer (PS/PP/UNIVERSAL) coating are capable of withstanding a temperature of 160C for 1 1-second dwell time.

Aluminium Foil Lids can also be customised as per customer requirement in any size, shape, printing, and type of foil.

Price range: From USD 0.01 to USD 0.10 per piece, depending on specifications.

Minimum order quantity: 500,000 pieces (5 lakh pcs) per size per design.
