Salient Features
Highly efficient 3-phase water filled motor
- Easily rewindable
- Dynamically balanced design
- Extended life with flawless performance
- Thrust bearing : Carbon + S.S. material for High thrust load capacity
- 100% EC grade copper winding
- Presenting world 1st design (design registered 100% fully S.S.-304 investment casting pumps.
- Zero maintenance
- Superior performance
- Sand proof operation
- Highly efficient 3-phase water filled motor
Product Specification
Power Range : 1.0 HP to 20.0 HP
Operating Speed : 0 - 2890 RPM
Operating Frequency : 0 - 50 Hz
Input Solar DC Power Range : 900 Wp, 20000 Wp
Input Solar DC Voltage Range : 110 Vmp - 600 Vmp
Head Range : 30 Mtr , 220 Mtr
Discharge Range : 10000 LPD - 420000 LPD
Type of Duty : S1
material of construction - motor
Part Grade
Body Lock : Spring Steel
Stud Ring : M.S. (Zinc Coated)
Stator Stamping : CRNGO - M45 Silicon
Winding Wire : 100% EC Copper
Shaft : SS-420
Rotor Stamping : CRNGO - M45 Silicon
Copper Lamination : 100% EC Copper
Upper Housing : SS-304
Lower Housing : SS-304
Connection Piece : SS-304
Oil Seal : NBR
TB Set : Carbon + SS
Base : SS-304
Drain Plug : Brass
Couple Sleeve : Stainless Steel
Water Bolt : Brass
MATERIAL OF CONSTRUCTION PUMP
Part Grade
Suction : SS-304
Couple : Stainless Steel
Couple Counter : SS-304
Rubber Seal : NBR
Bush Seal Cover : SS-304
Bowl : SS-304
Impeller : SS-304
Key : SS-410
Bowl Bush : NBR
Bush : LTB-4
Middle : SS-304
Cap : NBR
Outlet : SS-304

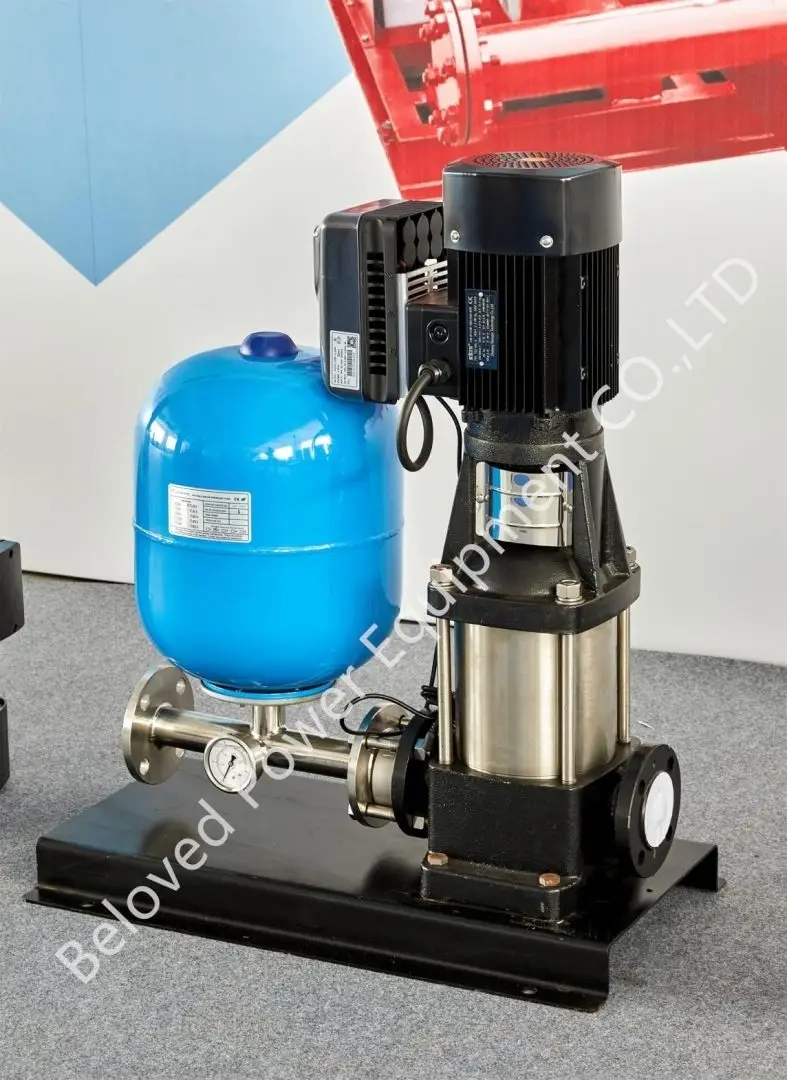

1, before commissioning must ensure that the pump and pipeline full of water, so as not to damage the pump.
2, the pump is filled with water to open the pump bleeder valve for exhaust, so as not to cause unstable pipeline pressure can not be normal pressure regulation.
3, the cabinet door on the surface of the manual stop automatic transfer switch, hit the manual for the frequency start, automatic inverter start by the outlet pipe remote pressure gauge according to the set pressure automatic control.
4, due to manual and automatic power supply into the line is not the same, so the manual and automatic pumps are not the same, all pumps to work manually are adjusted to the positive, automatic reversal of the frequency converter output on the U2, V2, W2, any two-phase switching can be.
5, set the pressure to stop the pump (i.e., the maximum pressure) just press (ENTER) on the inverter panel into the display (REF) and then press (ENTER) into the display of 40% (i.e., 0.4MPa pressure), such as the need to increase and decrease the pressure according to the (Increase key) or (Decrease key) to set the required pressure value (i.e., the pressure stop the pump), set the value of the pressure and then press (ENTER) to save, then the After setting the pressure value, press (ENTER) to save it, and then press (EXIT) to return to the main interface to complete the setting; the pump pressure is based on the highest pressure to be converted by itself without setting.
Product Name - TULLU TOP PCS 0.5 HP/PCS 0.75 KW/ PCS 1.0 HP/PCS 1.5 HP
Product Description - Pressure Booster Pumps
Price of product ( USD price or FOB price) - Prices will be quoted directly to the clients upon enquiry.
Product origin - Varanasi, Uttar Pradesh, India
Key Specifications/Special Features - High Water Pressure at all times. Suited both for homes as well as commercial establishments. No longer will you ever face problem of inadequate water pressure. Specifications PCS 0.5 HP : Suitable for 2 Bathrooms. Supply : AC 230 Volts/50 Hz. Drive : 0.5 HP. Total Head : 33 mtrs. Maximum Discharge : 2800 LPH. Specifications PCS 0.75 KW : Suitable for 3 Bathrooms. Supply : AC 230 Volts/50 Hz. Drive : 0.75 KW. Total Head : 37 mtrs. Maximum Discharge : 2550 LPH. Specifications PCS 1.0 HP : Suitable for 4 to 5 Bathrooms. Supply : AC 230 Volts/50 Hz. Drive : 1.0 HP. Total Head : 45 mtrs. Maximum Discharge : 3500 LPH. Specifications PCS 1.5 HP : Suitable for 4 to 5 Bathrooms. Supply : AC 230 Volts/50 Hz. Drive : 1.5 HP. Total Head : 55 mtrs. Maximum Discharge : 3500 LPH.
Minimum Order Size and Packaging details - 20 feet container
Product Name - TULLU TOP PCS Shallowell Pump 1.1 H.P.
Product Description - Pressure Booster Pumps
Price of product ( USD price or FOB price) - Prices will be quoted directly to the clients upon enquiry.
Product origin - Varanasi, Uttar Pradesh, India
Key Specifications/Special Features - High Water Pressure at all times. Suited both for homes as well as commercial establishments. No longer will you ever face problems of inadequate water pressure. Specifications : Suitable for 4 to 5 Bathrooms with very high water pressure. Supply : AC 230 Volts/50 Hz. Drive : 0.83 KW. Total Head : 35 mtrs. Maximum Discharge : 3000 LPH
Minimum Order Size and Packaging details - 20 feet container
Zl-ly-75
Volt: 24¡à5% vdc
Inlet pressure: 0 psi
Working pressure: 70 psi
Flow at 70 psi ¡ý800ml/min
Max pressure:130¡à10 psi
Working current: ¡ü1.2a
Rated current: 1.5a
Temperature of motor shell: ¡ü50¡æ (after 24 hours of continuous running)
Noise£º¡ü50db£»
