Pipeline Pumps Of Various Materials

(3.1)
GOLD Member
Supplier From China
VERIFIED
Jul-24-25

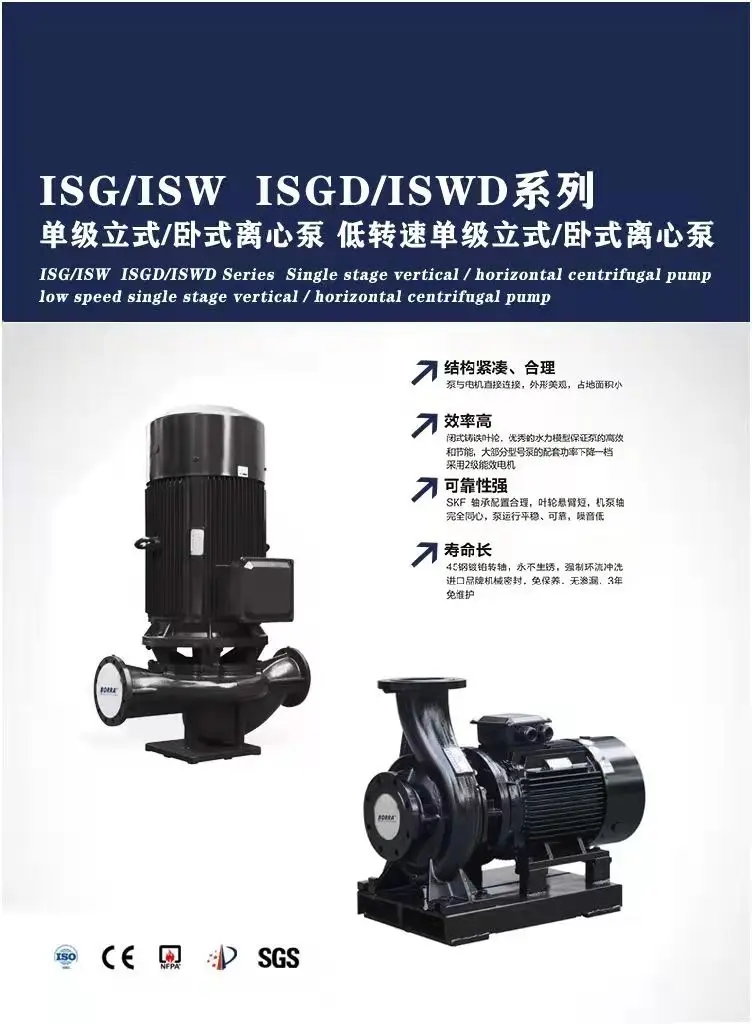

Single-stage pipeline centrifugal pump with flange interface in accordance with international standards. The pump can be equipped.

Price and Minimum Quantity

Price: Negotiable
MOQ: Not Specified
File a complaint
Rate This Member
Supplier Of Industrial Pumps

Recent User Reviews

This user has not received any reviews yet!

Verification Status



Contact Supplier
Renew

More Items Similiar to: Pipeline Pumps Of Various Materials

GOLD Member
VERIFIED
Jun-23-25
Pipeline Centrifugal Pump

Pipeline Centrifugal Pump, 1

(3.1)
$1.00K - $10.00K / Box (CIF)
MOQ: 1  Boxes
Sample Available
  Borra Supply Chain Co., Ltd
Supplier From Weifang, Kuaiwen, China
Supplier Of Industrial Pumps

Pipeline centrifugal pumps are general-purpose equipment for conveying clear water and liquids with similar physical and chemical properties, widely used in industrial and urban water supply and drainage, high-rise building pressure boosting, fire-fighting systems, HVAC circulation and other fields [2]. According to the installation form can be divided into vertical and horizontal, according to the impeller structure is divided into closed, open and semi-open [1], the adaptable medium temperature range -20 â?? to 240 â?? [3], typical models include ISG, ISW, IRG, etc. [2] [4].
The equipment consists of impeller, pump body, sealing ring and other core components, the impeller rotates to generate centrifugal force to achieve liquid transport, the pump body plays a supporting role, and the sealing system to protect the operating vacuum. It adopts modular piping design, equipped with high-efficiency hydraulic model, supports electric drive and direct connection structure, featuring low noise, small footprint and easy maintenance. Installation requires precise calculation of suction height and ensuring pipeline sealing, and the performance curve reflects the relationship between flow rate, head and power [4]. Common faults such as air binding can be solved by filling water and exhausting air, and the bearings and sealing parts need to be overhauled regularly [2].
GOLD Member
VERIFIED
Jul-23-25
Industrial pumps/chemical pumps of various mater

Industrial Pumps/chemical Pumps Of Various Mater

(3.1)
Ask for price
MOQ: Not Specified
  Borra Supply Chain Co., Ltd
Supplier From Weifang, Kuaiwen, China
Supplier Of Industrial Pumps

Industrial pumps/chemical pumps of various mater
GOLD Member
VERIFIED
Jul-08-25
Centrifugal Pumps/various Stainless Steel

Centrifugal Pumps/various Stainless Steel

(3.1)
Ask for price
MOQ: Not Specified
  Borra Supply Chain Co., Ltd
Supplier From Weifang, Kuaiwen, China
Supplier Of Industrial Pumps

Centrifugal pumps use rotor dynamics, most commonly with impellers, which rotate at a high frequency to create.
GOLD Member
VERIFIED
Mar-19-20
(4.2)
Supplier From Bangalore, Karnataka, India

Supplier: Fuel like diesel en590, jet fuel a1, lngg, lpg, copper cathode, a7 ingots, used rails, agri products like sugar, wheat, rice, soyabean etc, sunflower oil, valves & fasteners, spare parts for machineries. construction equipments like concrete machines, crushers, sand washing plants, material handling equipments, and construction materials, coal, diesel, machineries, tyres, generators, tyre shredder machines, fasteners, valves, epoxy, chemicals
Services: Exporter

Supplier Of Rice   |   Building Construction Machineries and Equipments   |   Coal   |   Construction Materials   |   Industrial Chemicals   |   Sunflower Oil

Service Provider Of Importing/Exporting   |   Diesel Generators   |   Wheat   |   Concrete Mixer, Concrete Pump   |   Industrial Valves & Gauges   |   Diesel   |   Industrial Machinery & Plants   |   Sugar   |   Fasteners
GOLD Member
VERIFIED
Oct-25-20
DC Solar Pumping System

Dc Solar Pumping System

(3.4)
Ask for price
MOQ: Not Specified
  Falcon Pumps Pvt. Ltd.
Supplier From Rajkot, Gujarat, India
Supplier Of Industrial Pumps

Product Specification
Power Range : 1.0 HP to 2.0 HP
Operating Speed : 0 - 3100 RPM
DC Power Range : 900 Wp - 2000 Wp
DC Voltage Range : 70 Vmp - 110 Vmp
Head Range : 30 Mtr - 90 Mtr
Discharge Range : 8000 LPD - 30000 LPD
Type of Duty : S1

- Zero Running Cost
- Less Maintenance
- Eco-Friendly
- Simple Installation
- Pollution Free

Material Of Construction - Motor
Part Grade
Mechanical Seal : Graphite Ceramic
Motor Shaft : Stainless Steel
Motor Body Pipe : SS-304
Lower Hosing : Aluminum
Diaphragm : High Nitrile butyl rubber
Top Cap : Stainless Steel
Bottom Plate : Stainless Steel
End Cap : Stainless Steel

MATERIAL OF CONSTRUCTION SCREW (HELICAL) PUMP
Part Grade
Outlet : SS-304
Suction : SS-304
Outer Shell : SS-304
Rotor Screw : Stainless Steel
Stator : Rubber Coated Alloy

MATERIAL OF CONSTRUCTION â?? CENTRIFUGAL PUMP
Part Grade
Check valve housing : SS-304
Check valve : PC
Suction : SS-304
Outer Shell : SS-304
Impeller : POM
Bowl : PC
Pump Bush : NBR
Pump Sleeve : Stainless Steel
Pump Shaft : Stainless Steel
Coupling / Pump Couple : Stainless Steel
GOLD Member
VERIFIED
Oct-25-20
AC Solar Pumping System - Borewell

Ac Solar Pumping System - Borewell

(3.4)
Ask for price
MOQ: Not Specified
  Falcon Pumps Pvt. Ltd.
Supplier From Rajkot, Gujarat, India
Supplier Of Industrial Pumps

Salient Features
Highly efficient 3-phase water filled motor
- Easily rewindable
- Dynamically balanced design
- Extended life with flawless performance
- Thrust bearing : Carbon + S.S. material for High thrust load capacity
- 100% EC grade copper winding
- Presenting world 1st design (design registered 100% fully S.S.-304 investment casting pumps.
- Zero maintenance
- Superior performance
- Sand proof operation
- Highly efficient 3-phase water filled motor

Product Specification
Power Range : 1.0 HP to 20.0 HP
Operating Speed : 0 - 2890 RPM
Operating Frequency : 0 - 50 Hz
Input Solar DC Power Range : 900 Wp, 20000 Wp
Input Solar DC Voltage Range : 110 Vmp - 600 Vmp
Head Range : 30 Mtr , 220 Mtr
Discharge Range : 10000 LPD - 420000 LPD
Type of Duty : S1

material of construction - motor
Part Grade
Body Lock : Spring Steel
Stud Ring : M.S. (Zinc Coated)
Stator Stamping : CRNGO - M45 Silicon
Winding Wire : 100% EC Copper
Shaft : SS-420
Rotor Stamping : CRNGO - M45 Silicon
Copper Lamination : 100% EC Copper
Upper Housing : SS-304
Lower Housing : SS-304
Connection Piece : SS-304
Oil Seal : NBR
TB Set : Carbon + SS
Base : SS-304
Drain Plug : Brass
Couple Sleeve : Stainless Steel
Water Bolt : Brass

MATERIAL OF CONSTRUCTION PUMP
Part Grade
Suction : SS-304
Couple : Stainless Steel
Couple Counter : SS-304
Rubber Seal : NBR
Bush Seal Cover : SS-304
Bowl : SS-304
Impeller : SS-304
Key : SS-410
Bowl Bush : NBR
Bush : LTB-4
Middle : SS-304
Cap : NBR
Outlet : SS-304
GOLD Member
VERIFIED
Jun-17-25
Drainage And Sewage Solutions/ Product Range

Drainage And Sewage Solutions/ Product Range, 1

(3.1)
$1.00K - $2.00K / Box (FOB)
MOQ: 1  Boxes
Sample Available
  Borra Supply Chain Co., Ltd
Supplier From Weifang, Kuaiwen, China
Supplier Of Industrial Pumps

1, before commissioning must ensure that the pump and pipeline full of water, so as not to damage the pump.
2, the pump is filled with water to open the pump bleeder valve for exhaust, so as not to cause unstable pipeline pressure can not be normal pressure regulation.
3, the cabinet door on the surface of the manual stop automatic transfer switch, hit the manual for the frequency start, automatic inverter start by the outlet pipe remote pressure gauge according to the set pressure automatic control.
4, due to manual and automatic power supply into the line is not the same, so the manual and automatic pumps are not the same, all pumps to work manually are adjusted to the positive, automatic reversal of the frequency converter output on the U2, V2, W2, any two-phase switching can be.
5, set the pressure to stop the pump (i.e., the maximum pressure) just press (ENTER) on the inverter panel into the display (REF) and then press (ENTER) into the display of 40% (i.e., 0.4MPa pressure), such as the need to increase and decrease the pressure according to the (Increase key) or (Decrease key) to set the required pressure value (i.e., the pressure stop the pump), set the value of the pressure and then press (ENTER) to save, then the After setting the pressure value, press (ENTER) to save it, and then press (EXIT) to return to the main interface to complete the setting; the pump pressure is based on the highest pressure to be converted by itself without setting.
GOLD Member
VERIFIED
Oct-25-20
Monoblock Pumps FCM Series

Monoblock Pumps Fcm Series

(3.4)
Ask for price
MOQ: Not Specified
  Falcon Pumps Pvt. Ltd.
Supplier From Rajkot, Gujarat, India
Supplier Of Industrial Pumps

Monoblock Pumps
Falcon centrifugal monoblock pumpsets are powered by a totally enclosed fan cooled AC induction two pole motor. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the
frame. The windings are of high-grade enameled copper wire offer excellent resistance and are varnish impregnated. Construction of motor frame and usage of quality materials result in high performance and low temperature rise
thereby increasing the life cycle of the motor.

salient features
High operating efficiency resulting in lower power consumption
- Good suction lift characteristics
- Specially designed for wide voltage operation.
- Dynamically balanced rotating parts including rotor and impeller ensures minimum vibration and longer life.
- Back pull-out design for easy servicing and repair.
- Double shielded ball bearings, so no need of external lubrication.
- Mechanical seal is provided as per customers requirement

Specification
- Power Range : 2.2 Kw - 11.2 Kw (3.0 HP - 15.0 HP)
- Version : Three Phase, 380-415V, 50Hz AC Supply
- Speed : 2880 RPM
- Maximum Total Head : 65 Mtr.
- Maximum Flow Rate : 1450 LPM
- Maximum Suction Lift : 7 Mtr.
- Degree of Protection : IP 44
- Class of Insulation : B0
- Maximum Ambient Tem. : 40 C
- Sealing : Stuffing Box
- Type of Duty : S1 (Continuous)
- Direction of Rotation : Three Phase, Electrically Reversible
- Nominal Pumpset Size (Suction X Delivery in inch) : 50 X 40, 50 X 50, 65 X 50, 80 X 65, 80 X 80
100 X 80 and 100 X 100 (All size in mm)

Characteristics Of Clear Cold Water
- Maximum liquid temperature : 33C max
- Permissible amount of sand : 25 g/m
- Allowable solids : 3000 ppm (max.)
- Chloride ion density : 500 ppm (max.)
- Turbidity : 50 ppm silica scale (max.)
- Hardness (Drinking Water) : 300 ppm (max.)
- Specific gravity : 1.004 (max.) 6
- Viscosity : 1.75 x 10 mÃ?/sec (max.)
- Ph Value : 6.5 to 8.5

Material of construction - motor
Part Name Material
Gland Dori : Graphite String
Motor Shaft : EN-19 with SS SLEEVE
Motor Body : FG-250
Bearing : SKF
End Cover : FG-250
Bracket : FG-250
Flange : FG-250
Casing : FG-250
Impeller : FG-250
Cooling Fan : Aluminium
GOLD Member
VERIFIED
Oct-25-20
Monoblock Pumps FCMl Series

Monoblock Pumps Fcml Series

(3.4)
Ask for price
MOQ: Not Specified
  Falcon Pumps Pvt. Ltd.
Supplier From Rajkot, Gujarat, India
Supplier Of Industrial Pumps

Monoblock pumps -
Falcon centrifugal monoblock pumpsets are powered by a totally enclosed fan cooled AC induction two pole motor. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the
frame. The windings are of high-grade enameled copper wire offer excellent resistance and are varnish impregnated. Construction of motor frame and usage of quality materials result in high performance and low temperature rise
thereby increasing the life cycle of the motor.

salient features
- High operating efficiency resulting in lower power consumption
- Good suction lift characteristics
- Inbuilt thermal overload protector in al single phase pumpsets upto 2.0 HP
- Specially designed for wide voltage operation
- Dynamically balanced rotating parts including rotor and impeller ensures minimum vibration and longer life
- Back pull-out design for easy servicing and repair
- Double shielded ball bearings, so no need of external lubrication
- All Model fitted to Mechanical seal.

specification
- Power Range : 0.37Kw - 1.5 Kw (0.5 HP - 2.0 HP)
- Version : Single Phase, 220-240V, 50Hz AC Supply
Three Phase, 380-415V, 50Hz AC Supply
- Speed : 2880 RPM
- Maximum Total Head : 32 Mtr.
- Maximum Flow Rate : 940 LPM
- Maximum Suction Lift : 7 Mtr.
- Degree of Protection : IP 44
- Class of Insulation : B0
- Maximum Ambient Tem. : 40 C
- Sealing : Mechanical Seal
- Type of Duty : S1 (Continuous)
- Method of Starting : Permanent Split Capacitor (PSC)
- Direction of Rotation : Three Phase, Electrically Reversible
- Nominal Pumpset Size (Suction X Delivery in inch) : 25 X 25, 32 X 25, 40 X 32, 40 X 40, 50 X 40,
50 X 50, 65 X 50, 80 X 65, 80 X 80 (All size in mm)

characteristics of clear cold water
- Maximum liquid temperature : 33C max
- Permissible amount of sand : 25 g/m
- Allowable solids : 3000 ppm (max.)
- Chloride ion density : 500 ppm (max.)
- Turbidity : 50 ppm silica scale (max.)
- Hardness (Drinking Water) : 300 ppm (max.)
- Specific gravity : 1.004 (max.) 6
- Viscosity : 1.75 x 10 m/sec (max.)
- Ph Value : 6.5 to 8.5
Part Name Material
Mechanical Seal : Carbon & Ceramic
Motor Shaft : EN-8
Motor Body : FG-250
Bearing : SKF
End Cover : FG-250
Bracket : FG-250
Flange : FG-250
Casing : FG-250
Impeller : FG-250
Cooling Fan : Plastic
