Dermatology Scalp Analyzer Equipment

AISG - Artificial Intelligence Scalp Grader: This AI-powered system analyzes scalp conditions, identifies 10 scalp types, and provides personalized care solutions. Developed with Seoul National University Bundang Hospital, it offers customized shampoos and serums with a 93% satisfaction rate, improving scalp health by 50% in just four weeks. Ideal for salons and clinics.

Artificial Intelligence Customized Scalp Cosmetics Service System:
The AI Scalp Analysis and Custom Care System leverages advanced artificial intelligence through its Scalp Analyzing System to evaluate scalp type, hair density, thickness, condition, and hair loss type using photography and interviews. This data-driven approach enables the immediate creation of personalized scalp care products, including shampoo, scalp serum, and hair treatments, tailored to individual needs.

SPECIFICATION:

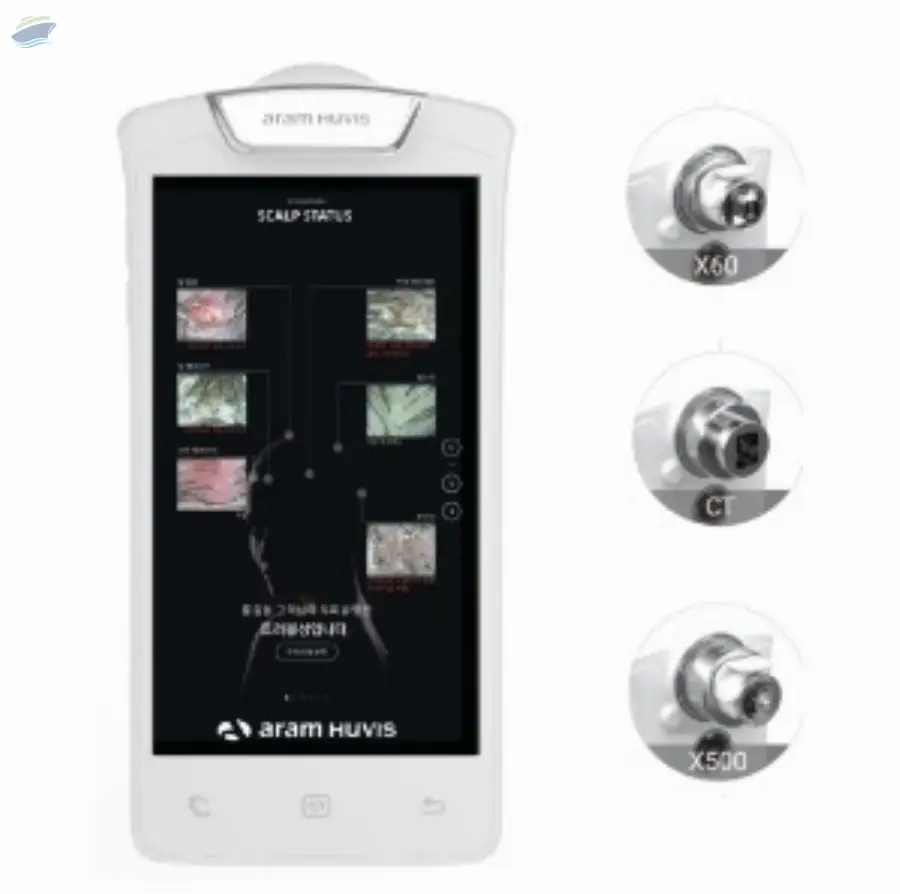

ITEM: Artificial Intelligence (AI) Scalp Analysis System [ASM-224S]
Processor: ARM Cortex A 7 [Octa Core]
Memory : eMMC 32 GB
OS : Android 6.01 [ Marshmallow ]
Image Camera Sensor : Dual Camera Sensor - 1/4 inch Color CMOS [5 Mega Pixel]
X1 Camera Sensor / High Magnification Camera Sensor
Sensor Pixel Total Pixel: 5,038,848 Pixel / Effective Pixel: 4,915,200 Pixel
Image Capture Size: VGA: 640 (H) X 480 (V) / 5 M: 2592(H) X 1944(V)
High Magnification Lens: X 60 / X 500 / CT
Focusing VCM Auto Focusing / VCM Manual Focusing
Touch LCD Type : C-Touch TFT LCD / Size: 5.5 inch / Resolution: FHD [1080 X 1920]
Battery Type : Li-Ion / Typical Capacity: 3,000mAh / Normal Voltage: 3.7V
Display Mirroring : HDMI / Wi-Fi [Wireless LAN] : Smartphone / Tablet [iOS, android] / PC [Windows, Mac]

The ASW Analyzer Series is a high-performance skin and hair analysis solution designed for professionals. It delivers precise diagnostics with advanced imaging technology, offering a comprehensive assessment for personalized skincare and hair care treatments.

ASW 200 Hair Analysis Measures:
1. Hair Loss Status
2. Scalp Status
3. Hair Density
4. Keratin of Scalp
5. Scalp Sensitivity
6. Scalp Sebum (UV)
7. Hair Thickness
8. Hair Pore Status
9. Cuticle Status

Wi-Fi Video Streaming Solution:
VGA (640 x 480) | 30 FPS Max, 2 M (1600 x 1200) | 15 FPS Max

VGA / 2 Mega Still Image Capture
Start | Mode Change | Image Capture | Analysis | Result

SPECIFICATION:
- Wi-Fi Type : Wireless LAN IEEE 802.11 b/g/n
- USB : USB 2.0 UVC (USB Video Class)
- OS Support : Windows
- Image Sensor : 1/4 Inch Color CMOS UXGA (2 Mega Pixel)
- Sensor Pixel : Effective pixel : 1,624 X 1,212 Pixel
- Image Capture Size : Wi-Fi : VGA (640 X 480)
- VGA (640 X 480) | 2 M (1,600 X 1,200)
- Image Frame Rate : VGA (640 X 480) - 30 Frame Max, 2 M (1,600 X 1,200) - 15 Frame Max
- Camera Button Function : Start, Mode Change, Image Capture, Analysis, Result
- High Magnification Lens
1. X 1
2. X 60 - NL
3. X 60 - PL
4. X 60 - UV
5. X 200 - NL
6. X 500 - NL
- Focusing: Auto Focusing Type (AF-C / AF-S /M F)
- Disinfection : UV Disinfection Lamp
- DC IN Adaptor : 12 V DC / 1.5 A Max
- Out Dimension : 55 (W) X 67 (H) X 135 (D) mm (Camera Only / with X 30 Lens) 86.5(W) X 112(H) X 246 (D) mm (Camera & Cradle A-SSY)
- Weight: About 800 g (ASW-100 / Camera & Cradle)

NUVO Family Antibacterial Body Wash is a liquid bath soap for families with the TCC formula and Vitamin E. Kills 99.9% of germs and viruses. Equipped with high vitamin E which maintains skin moisture and softness. Extra soft formula, effectively kills germs, dries quickly and is not sticky, dermatologically tested. Safe to use and does not cause irritation.

Available in 7 variants:
- Mild Protect (blue)
- Care Protect (Pink)
- Fresh Protect (Yellow)
- Nature Protect(Green)
- Total Protect (Red)
- Relax & Protect (purple)
- Sakinah (tosca)

Size:
- pouch : 48 x 60 ml, 12 x 250 ml, 12 x 450 ml, 12 x 900 ml.
- bottle 12 x 250 ml
- pump 6 x 600 ml
- Jerry cans 20 Kg

AISG - Artificial Intelligence Scalp Grader: This AI-powered system analyzes scalp conditions, identifies 10 scalp types, and provides personalized care solutions. Developed with Seoul National University Bundang Hospital, it offers customized shampoos and serums with a 93% satisfaction rate, improving scalp health by 50% in just four weeks. Ideal for salons and clinics.

Artificial Intelligence Customized Scalp Cosmetics Service System:
The AI Scalp Analysis and Custom Care System leverages advanced artificial intelligence through its Scalp Analyzing System to evaluate scalp type, hair density, thickness, condition, and hair loss type using photography and interviews. This data-driven approach enables the immediate creation of personalized scalp care products, including shampoo, scalp serum, and hair treatments, tailored to individual needs.

SPECIFICATION:
- ITEM : Artificial Intelligence (AI) Scalp Analysis Mirror Display System [AMS-050]
- Maximum resolution: 1920 x 1080 pixel (FHD)
- Contrast : 3000:1
- Response time: 5 ms
:- OS : Android 7.1
- Storage : 2G
- Flash: 8G
- Wi-Fi : AP 6255 (2.4 Ghz / 5 Ghz)
- Touch technology : Capacitive touch screen
- HDMI input/output : 1
- USB: 5 USB port open

ASM Analyzer Series : Advanced image scanning and analysis that delivers highly accurate hair measurements.

Hair Analysis ASM 200 measures:

Hair Loss Type / Scalp Status / Hair Density / Keratin of Scalp Sensitivity / Hair Pore Status / Scalp Sebum / Hair Thickness / Cuticle Status

Mirroring Function :
Experience a larger, more immersive view. ASM's mirroring function enlarges the screen, allowing customers to follow the entire analysis process in real time on a big display. After the analysis, all photos and results can be easily shared.

SPECIFICATION:
- Processor : ARM Cortex A7 [Octa Core]
- Memory : eMMC 32GB
- OS : Android 6.01 [ Marshmallow ]
- Image Camera Senso r: Dual Camera Sensor - 1/4 Inch Color CMOS [5 Mega Pixel]
- X1 Camera Sensor / High Magnification Camera Sensor
- Sensor Pixel : Total Pixel: 5,038,848 Pixel / Effective Pixel: 4,915,200 Pixel
- Image Capture Size : VGA: 640(H) X 480(V) / 5 M: 2592(H) X 1944(V)
- High Magnification Lens : X 30-NL / X 30-PL / X 30-UV / X 30-WL / Moisture Sensor
- Focusing : VCM Auto Focusing / VCM Manual Focusing
- Touch LCD Type : C-Touch TFT LCD / Size: 5.5 Inch / Resolution: FHD [1080 x 1920]
- Battery Type : Li-Ion / Typical Capacity: 3,000 mAh / Normal Voltage: 3.7 V
- Display Mirroring : Wi-Fi [Wireless LAN] : Smartphone / Tablet [iOS, android] / PC [Windows, Mac]

The API Analyzer Series is designed for a seamless, intuitive user experience, offering simple yet advanced skin and hair analysis. This series prioritizes ease of use while delivering precise diagnostics.

API 202 Hair Analysis Measures:
1.Hair Loss Status
2. Scalp Status
3. Hair Density
4. Keratin of Scalp
5. Sensitivity
6. Hair Thickness
7. Hair Pore Status

Wi-Fi Video Streaming Solution:
VGA (640 X 480) | 30 FPS Max

Automatic Remote Analysis:
Start | Mode Change | Image Capture | Analysis | Result

Multi OS Support :
Android | iOS | Window

SPECIFICATION:
- Wi-Fi Type : Wireless LAN IEEE 802.11 b/g/n
- OS Support : Android, iOS, Windows
- Image Sensor : 1/4 inch Color CMOS UXGA (2 Mega Pixel)
- Sensor Pixel : Effective pixel : 1,624 X 1,212 Pixel
- Image Capture Size : Wi-Fi Video Streaming VGA (640 X 480)
- Image Frame Rate : VGA (640 X 480) - 30 Frame Max
- LED : Dip LED X 8 ( NICHIA / Japan )
- High Magnification Lens 1. X 60 - NL
2. X 60 - PL
3.X 200 - NL (Crop)
4.X 200 - PL (Crop)
- Focusing : Fixed Type
- Battery : Type: Li-ION / Typical Capacity: 1,150 mAh
- Normal Voltage: 3.7 V
- DC IN Adaptor : 5V DC / 2A
- Out Dimension : 50 (W) X 162 (H) X 60 (D) mm (API-100 / Camera Only )
- Weight : About 120 g (API-100 / Camera Only / with Battery)
- Cradle : Stand

Scalp hair follicle tester
For Hairdressing salons, beauty salons, cosmetics
A good helper in the counter and hair salon
Lens 200X HD lens 50x trispectral lens
Feature Clearly examine your scalp / hair / hair follicles / skin

APM PRO Analyzer Series: Newly designed for greater clarity and precision, delivering superior performance to exceed your customers' expectations compared to traditional devices.

APM PRO 200 for Skin Analysis Measurement Mode:
1. Customer Face
2. Hair Loss Status
3. Scalp Status
4. Hair Density
5. Keratin of Scalp
6. Sensitivity
7. Hair Thickness
8. Hair Pore Status
9. Cuticle Status

Unlock sales potential with the power of information:
With a wide touch panel and dual lenses, build your own customer CRM. Capture detailed facial images using the x1 lens and store customer information for future business opportunities. Easily compare before-and-after results to enhance customer engagement and satisfaction.

Mirroring Function:
APM's wide screen expands even further with the mirroring function, allowing customers to view the same screen in real-time during the analysis. At the end of the process, all images and results can be easily shared for a seamless experience.

Email Function:
Share all analysis images and data effortlessly. Eliminate the need for paper receipts or customer cards. customers can conveniently check their beauty results anytime via email.

SPECIFICATION:
- Processor: ARM Cortex A7 [Octa Core]
- Memory : eMMC 32GB
- OS :Android 6.01 [ Marshmallow ]
- Image Camera Sensor : Dual Camera Sensor - 1/4 inch Color CMOS [5 Mega Pixel]
X1 Camera Sensor / High Magnification Camera Sensor
- Sensor Pixel : Total Pixel: 5,038,848 Pixel, Effective Pixel:4,915,200 Pixel
- Image Capture Size: VGA: 640(H) X 480(V) / 5 M: 2592(H) X 1944(V)
- LED : Dip LED X8
- Motion : 3 Axis
- Focusing : VCM Auto Focusing / VCM Manual Focusing
- Touch LCD : Type: C-Touch TFT LCD / Size: 4 inch / Resolution: WVGA [480 x 800]
- Battery : Type: Li-Ion / Typical Capacity: 2,000 mAh
- Normal Voltage: 3.7 V
- DC IN Adaptor: 5 V DC / 3 A
- Out Dimension : 62 (W) X 138 (H) X 50 (D) mm (with Skin Lens)
- Weight : About 120 g (with Battery)
- Cradle : Charger / Audio AMP & Speaker
- Display Mirroring : Wi-Fi [Wireless LAN] : Smartphone / Tablet [iOS, android] / PC [Windows, Mac]

Ellapiel is tailored to meet the needs of skin, hair, and scalp. By analyzing the unique skin and hair characteristics, we create bespoke formulations that enhance natural beauty and address specific concerns with precision and care.

Artificial Intelligence Customized Scalp Cosmetics Service System:
1. Measure - we collect accurate and detailed data about the hair and scalp. Our advanced analyzers provide tailored insights to help understand the scalp condition.
2. AI Scalp Analysis - Our cutting-edge AI technology takes your scalp health assessment to the next level. By analyzing the collected data, the AI identifies key issues affecting the scalp and hair health.scalp condition better.
3. Customized Prescription - Based on the comprehensive AI analysis, we create a customized formula specifically designed for your needs.
4. Treatment production- Once your prescription is finalized, our team formulates your custom treatment using premium ingredients. Crafted for quality and efficacy, your personalized solution is swiftly packaged and shipped worldwide for timely delivery.
