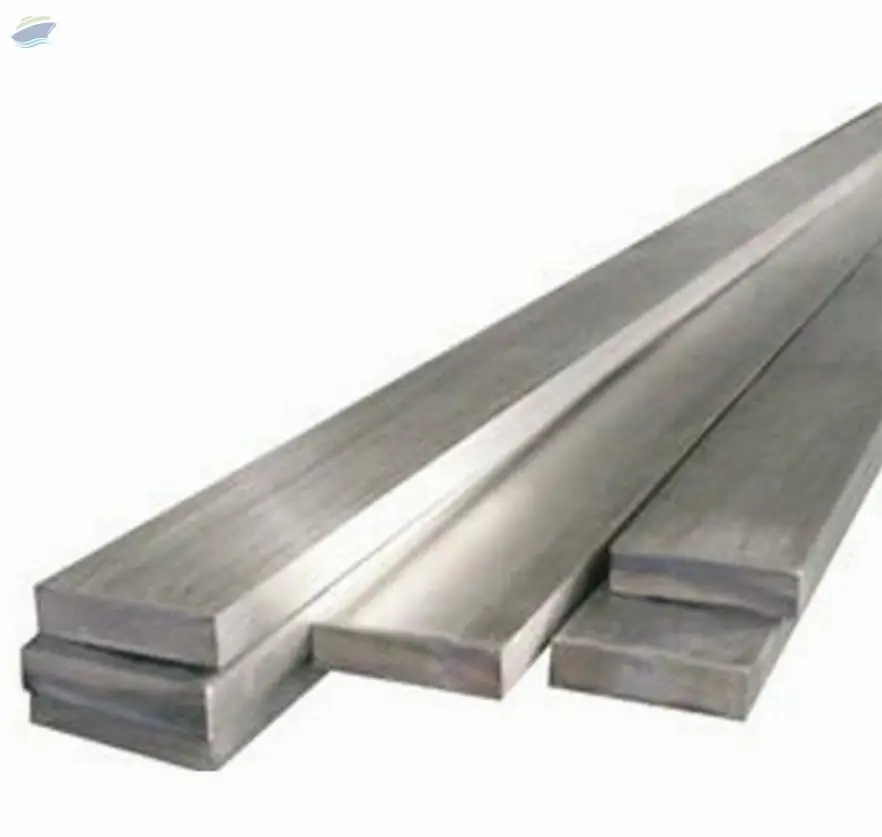

304 Stainless Steel Flat

Product Details:
Surface Finish Polished
Material Grade 304L, 316L, 304, 316
Usage/Application Construction
Application Oil & Gas Industry, Construction, Rail Coach Factory, Pharmaceutical / Chemical Industry, Automobile Industry
Technique Hot Rolled
I Deal In New Only
Country of Origin Made in India
With the valuable support of adept team of experts, Metal Aids India is offering a wide range of high quality SS Flat . The offered flat strip is offered in varied dimensions to cater the needs of different industry segments such as metallurgy, chemical, petroleum, medical industry. This flat strip is manufactured keeping in mind the standard of industry using high class raw material & latest technology. The provided flat strip is well checked on several quality parameters for delivering a flawless range.


Features:

â?¢ Optimum strengthâ?¢ Corrosion resistanceâ?¢ Longer life

Specifications:

¢ Diameter: 5.5-400.0 mm¢ Length: Max 12000 mm¢ Hardness: 91-91.5Grades:304316309310304L316L321

Product: Stainless steel flat bar
Diametre: 2mm~500mm
Length: As customer's requirements
Surface: Black & pickled & bright & hair line
Grade: 200 series& 300 series& 400 series
Standard: ASTM A276, AISI,GB/T 1220, JIS G4303
Application: These products are widely used in all kinds of architecture and engineering structure

Fetures

1) All products are made of high-quality imported raw materials.
2) Our products are certified by ISO9001:2008 authentication quality systems.
3) Excellent high temperature strength and work-hardening

Trade details (kindly need your attention):

1) Above all, in your inquiry, besides the diameter , please indicate clearly: the material of your required bar; your requirement of surface polishing or not having; your requirement of fixed-length for each bar or not having. Because those are aslo key to calculating our cost and telling you prices for your ordered bars.

2) Bars can be charged by metric ton

3) Packing: standard export packing.

4) Payment:by L/C sight or T.T against copy of B/L.

5) Shipment:20-30 days after receipt of the down payment or Irrevocable L/C sight.

6) Trade terms:FOB SHANGHAI,or CIF discharging port.

Product: Stainless steel flat bar
Diametre: 2mm~500mm
Length: As customer's requirements
Surface: Black & pickled & bright & hair line
Grade: 200 series& 300 series& 400 series
Standard: ASTM A276, AISI,GB/T 1220, JIS G4303
Application: These products are widely used in all kinds of architecture and engineering structure

Fetures

1) All products are made of high-quality imported raw materials.
2) Our products are certified by ISO9001:2008 authentication quality systems.
3) Excellent high temperature strength and work-hardening

Trade details (kindly need your attention):

1) Above all, in your inquiry, besides the diameter , please indicate clearly: the material of your required bar; your requirement of surface polishing or not having; your requirement of fixed-length for each bar or not having. Because those are aslo key to calculating our cost and telling you prices for your ordered bars.

2) Bars can be charged by metric ton

3) Packing: standard export packing.

4) Payment:by L/C sight or T.T against copy of B/L.

5) Shipment:20-30 days after receipt of the down payment or Irrevocable L/C sight.

6) Trade terms:FOB SHANGHAI,or CIF discharging port.

Product: Stainless steel flat bar
Diametre: 2mm~500mm
Length: As customer's requirements
Surface: Black & pickled & bright & hair line
Grade: 200 series& 300 series& 400 series
Standard: ASTM A276, AISI,GB/T 1220, JIS G4303
Application: These products are widely used in all kinds of architecture and engineering structure

Fetures

1) All products are made of high-quality imported raw materials.
2) Our products are certified by ISO9001:2008 authentication quality systems.
3) Excellent high temperature strength and work-hardening

Trade details (kindly need your attention):

1) Above all, in your inquiry, besides the diameter , please indicate clearly: the material of your required bar; your requirement of surface polishing or not having; your requirement of fixed-length for each bar or not having. Because those are aslo key to calculating our cost and telling you prices for your ordered bars.

2) Bars can be charged by metric ton

3) Packing: standard export packing.

4) Payment:by L/C sight or T.T against copy of B/L.

5) Shipment:20-30 days after receipt of the down payment or Irrevocable L/C sight.

6) Trade terms:FOB SHANGHAI,or CIF discharging port.

StandardASTMROSHAISIDINENGBJIS
LengthCustomized
Thickness 005300mm
Width Customized
Surface 2BBANO3NO4HLNO1Mirror
Material 3040Cr18Ni9A182F304SUSF30414301
Hardness 14H12H34HHO
Chemical Composition

Grade C Si Mn P S Ni Cr Mo Cu N Ti
SUS304 008
100
200
0045
0030
80100 1820
Mechanical Properties
Grade State Hardness HV Yield Strength Tensile Strength Enlongation
SUS304 ANN 200
205
520
40

14H 200250 225
550
35

12H 250310 470
780
6

34H 310370 665
930
3

H 370430 880
1130

Surfce Finish Definition Application
2B Those finishedafter cold rollingby heat treatmentpicking or other equivalent treatment and lastly by cold rolling to given appropriate luster
Medical equipmentFood industryConstruction materialKitchen utensils
BA Those processed with bright heat treament after cold rolling
Kitchen utensilsElectric equipmentBuilding construction
NO3 Those finished by polishing with No100 to No120 abrasives specified in JIS R6001
Kitchen utensilsBuilding construction
NO4 Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size
Kitchen utensilsBuilding constructionMedical equipment
HL Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size
Building construction
NO1 The surface finished by heat treatment and picking or processes corresponding there to after hot rolling
Chemical tankpipe

Product introduction

Stainless steel 304 and stainless steel 304L are also known as 1.4301 and 1.4307 respectively. 304 is the most versatile and widely used stainless steel. It is still sometimes referred to by its old name 18/8 which is derived from the nominal composition of 304 being 18% chromium and 8% nickel. 304 stainless steel is an austenitic grade that can be severely deep drawn. This property has resulted in 304 being the dominant grade used in applications like sinks and saucepans.
304L is the low carbon version of 304. It is used in heavy gauge components for improved weldability.
304H, a high carbon content variant, is also available for use at high temperatures

Possible Alternative Grades

Grade Why it might be chosen instead of 304
301L A higher work hardening rate grade is required for certain roll formed or stretch formed components.
302HQ Lower work hardening rate is needed for cold forging of screws, bolts and rivets.
303 Higher machinability needed, and the lower corrosion resistance, formability and weldability are acceptable.
316 Higher resistance to pitting and crevice corrosion is required, in chloride environments
321 Better resistance to temperatures of around 600-900 C is needed 321 has higher hot strength.
3CR12 A lower cost is required, and the reduced corrosion resistance and resulting discolouration are acceptable.
430 A lower cost is required, and the reduced corrosion resistance and fabrication characteristics are acceptable.



Warehouse Storage

Shandong Jintuo Metal Materials Co., Ltd is located in Liaocheng City, the capital of steel tubes. It is a large enterprise specializing in the sales of carbon steel, stainless steel, galvanized color coated products, and copper and aluminum.Our company adopts a flexible business approach and management mechanism to provide good services to customers, while also considering the interests of the owner and the project, in order to ensure the quality of the project.

Description:Stainless Steel Sheet, Cold Rolled Stainless Steel Sheet, Hot Rolled Stainless Steel Sheet
Type:201 202 304 316L 310S 309S 321 316Ti 410 420 430 409 duplex,SAF2205,S31803
Thickness:0.3-60mm
Width:500-2000mm or customized
Length:1000-6000 or customized
Standard size:1000-2000mm, 1250-2500mm, 1219-2438mm, 1500-3000mm
Surface:2B, No.1, No.4, HL, BA, 8K etc
Standard: ASME, ASTM, EN ,BS,GB,DIN, JIS etc
Application:Stainless steel sheet applies to construction field, ships building industry, petroleum & chemical industries,war and electricity industries, food processing and medical industry, boiler heat exchanger,machinery and hardware fields.

Decoration field:
304 stainless steel can be used in decoration field. 304 stainless steel has been widely used in the decoration industry due to its high tensile strength, good internal wall finish and excellent wear resistance. Just like our common stainless steel stair guardrails, handrails, stainless steel anti-theft windows, stainless steel doors, stainless steel tables and chairs, they are all made of 304 stainless steel decorative tubes. In life, the bathroom is wet and the kitchen is full of lampblack, so 304 stainless steel can be used in these two places.
Industrial field:
304 stainless steel is used in the industrial field, mainly for industrial transmission pipelines and mechanical structural parts such as petroleum, chemical, medical, food, light industry, mechanical instruments, etc. Generally, the working pressure of water supply system in high-rise buildings is high, while the tensile strength of 304 stainless steel is strong, and the possibility of water leakage under external force is very small. It is an important material of water supply system in high-rise buildings



Product name

Color Coated 304 Stainless steel sheet

Grade

304

Thickness range

0.3mm-3.0mm,

Width range

600mm-1500mm

Length

2000mm, 2438mm, 3048mm

Size

1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm, or as required

Finish

No. 1 , No. 4, hairline , 2b, BA, 8K, embossed, PVD color coated, sand blasted, anti-fingerprint

Lead time

7 to 15 working days after the receipt

Packing

Wooden pallet or according to customer's request

Application

Interior/exterior/architectural/bathroom decoration, elevator decoration, hotel decoration, kitchen equipment, ceiling, cabinet, kitchen sink, advertising nameplate

Product name : Color Coated 304 Stainless steel sheet

Grade : 304

Thickness range : 0.3mm-3.0mm,

Width range : 600mm-1500mm

Length : 2000mm, 2438mm, 3048mm

Size : : 1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm, or as required

Finish : No. 1 , No. 4, hairline , 2b, BA, 8K, embossed, PVD color coated, sand blasted, anti-fingerprint

Lead time : 7 to 15 working days after the receipt

Packing : Wooden pallet or according to customer's request

Application : Interior/exterior/architectural/bathroom decoration, elevator decoration, hotel decoration, kitchen equipment, ceiling, cabinet, kitchen sink, advertising nameplate

Warehouse Storage : Shandong Jintuo Metal Materials Co., Ltd is located in Liaocheng City, the capital of steel tubes. It is a large enterprise specializing in the sales of carbon steel, stainless steel, galvanized color coated products, and copper and aluminum.Our company adopts a flexible business approach and management mechanism to provide good services to customers, while also considering the interests of the owner and the project, in order to ensure the quality of the project

Packing and shipping : Our products are exported to multiple overseas countries and regions such as Europe, America, South Asia, Southeast Asia, Africa, and Latin America, and have won the trust and support of customers with excellent quality and service.
During the supply process, the company can timely use sufficient funds to adjust the production variety and model of the steel plant, ensuring the use needs during the peak construction period.
